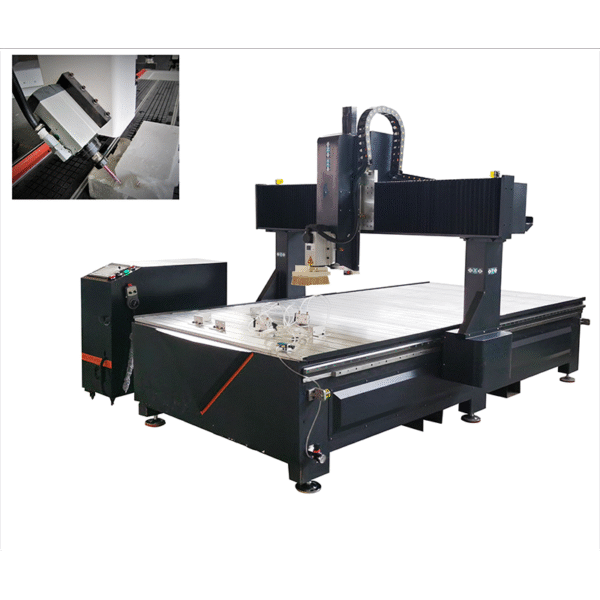

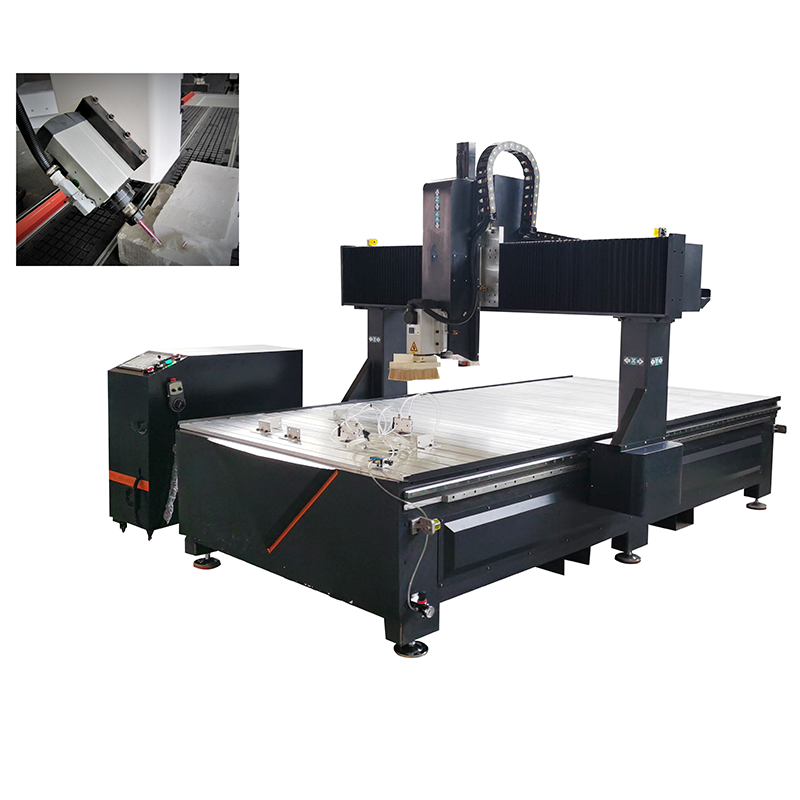

WS1525BT 4 Eksenli Strafor CNC Router

WS1525BT 4 Axis Styrofoam CNC Router

WS1525BT 4 Eksenli Strafor CNC Router

Kategori：
Whatsapp Facebook Youtube Twitter Instagram Zarf

Açıklama

1.Feature of styrofoam cnc router

Spindle can wave +/- 90 degree, can do 2d engraving on curved surface

2.Application of foam cnc router

Round eps pipe (engrave two same pieces, and paste them into one round pipe). Eps curved surface milling, flat foam sheet engraving and wood engraving milling, perforated-plate/sieve plate in mine industry



Item Data
Model WS1525BT
Machine frame Thick welded steel pipe
Machine table T-slot table
Machine size (mm)                  2500*1500*500（L*W*H）
X axis working size（㎜）               1500mm（4 axis working width is

1100mm）
Y axis working size（㎜）                           2500mm
Z axis working size（㎜）                           400mm
Working power              AC380V/50HZ
Spindle power        HQD 6KW air cooling spindle
Spindle rotating speed             0-18000r/min
Tools max size                 Φ20mm
Inverter                  7.5KW
Transmission    XY helical rack pinion, Z axis high precision Taiwan TBI ball screw
Kontrol sistemi       Own R&D controller (with handwheel and tool sensor)
Motor           Hybrid/closed loop servo
Guiding system       25 size square rail
Dust collector 5.5KW double bags dust collector
