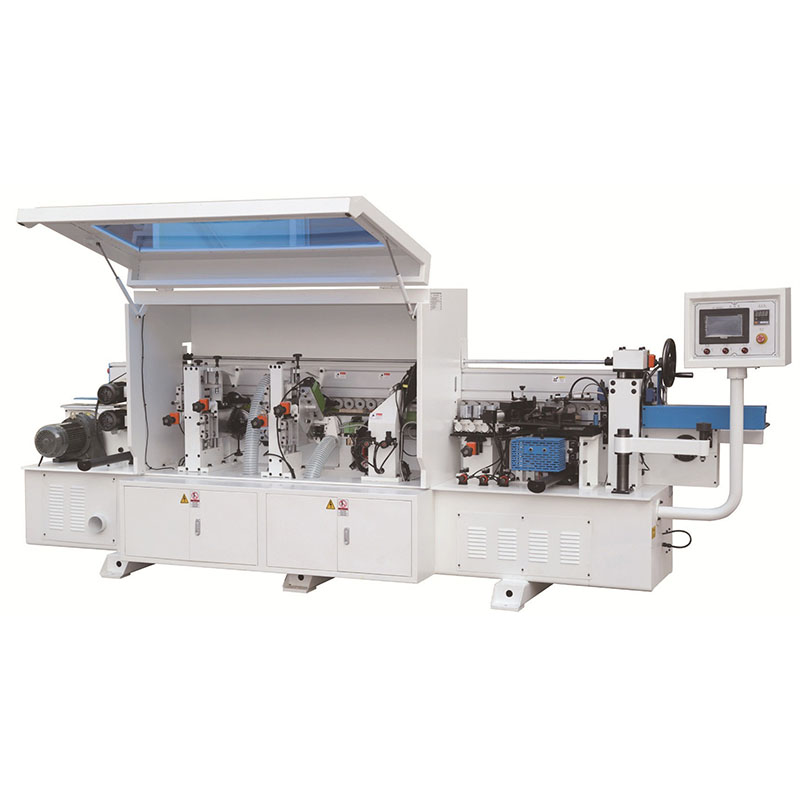

MFZ360 Fully Automatic Edge Banding Machine

Kategori： Kenar Bantlama Makinesi

Açıklama

Features of MFZ260 Automatic Edge Banding Machine:

1. This machine is suitable for linear edge sealing of solid wood particle board, solid wood multilayer board, density board, solid wood and other plate work pieces.

2. The material of edge band can be used as PVC veneer strip, etc.

3. Functions including Pre-heating, Gluing, End Cutting, Rough Trimming, Fine Trimming, Scraping and Buffing.

Technical Parameters:

Description & Specifications of automatic edge bander:
Model	MFZ360
Motor power	8.94kw
Overall size	4320×1100×1600mm
Feed speed	12-20m/min
Panel thickness	10-60mm
Edge thickness	0.4-3mm
Panel width	≥80mm
Working pressure	6kg
Weight	1900kgs
