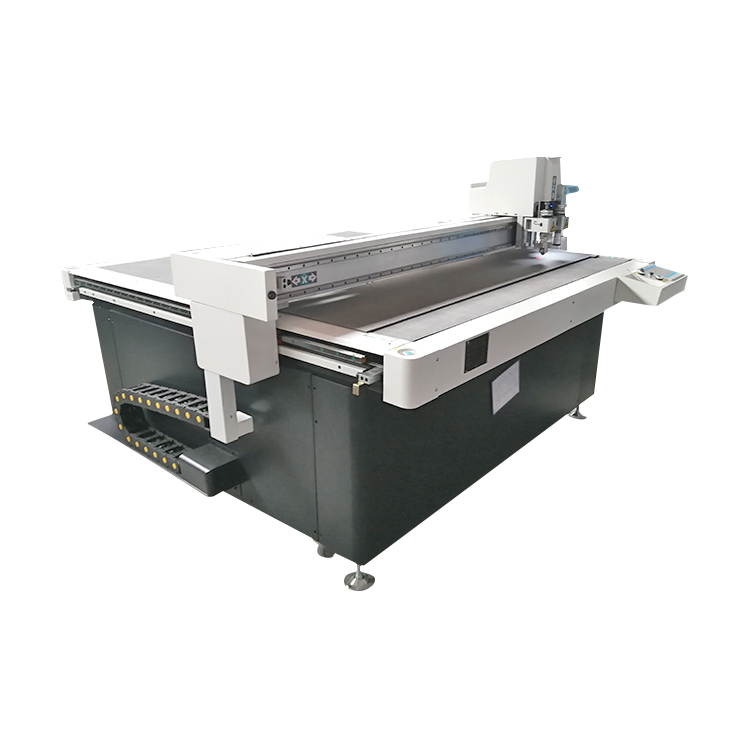

WS1612 Düz Yataklı Karton Kesici Plotter

Uygulama:

USED for cardboard box sample making, corrugated box cutting and folding, sign and graphic industry

Technical Parameters of Flatbed Cardboard Cutting Plotter Machine
Model	WS1612
Çalışma boyutu	1550*1200mm
Cutting height	10mm max by vibrating knife (if cut thick material, can use vcut tool to cut 45 degree angle in folding corner)
Kesme kafası	Oscillating knife+ creasing wheel (can add v cut tools for thick cardboard cutting, and ccd for printed image cutting)
Makine masası	Aluminum bellow suction table with 9 suction zone
Vaccum pump	9kw air cooling vacuum pump
Sürüş sistemi	Taiwan delta servo motor and driver
Kontrol sistemi	Ruida controller
Yazılım	Vcutworks
Şanzıman	Helisel kremayer dişlisi
Kesme hızı	30m/dak
Seyahat hızı	50m/dak
Çalışma gücü	380V 3 faz 50HZ
Makine ağırlığı	800kgs
Safety switch	with four safety sensor switch to guarantee operator safety
