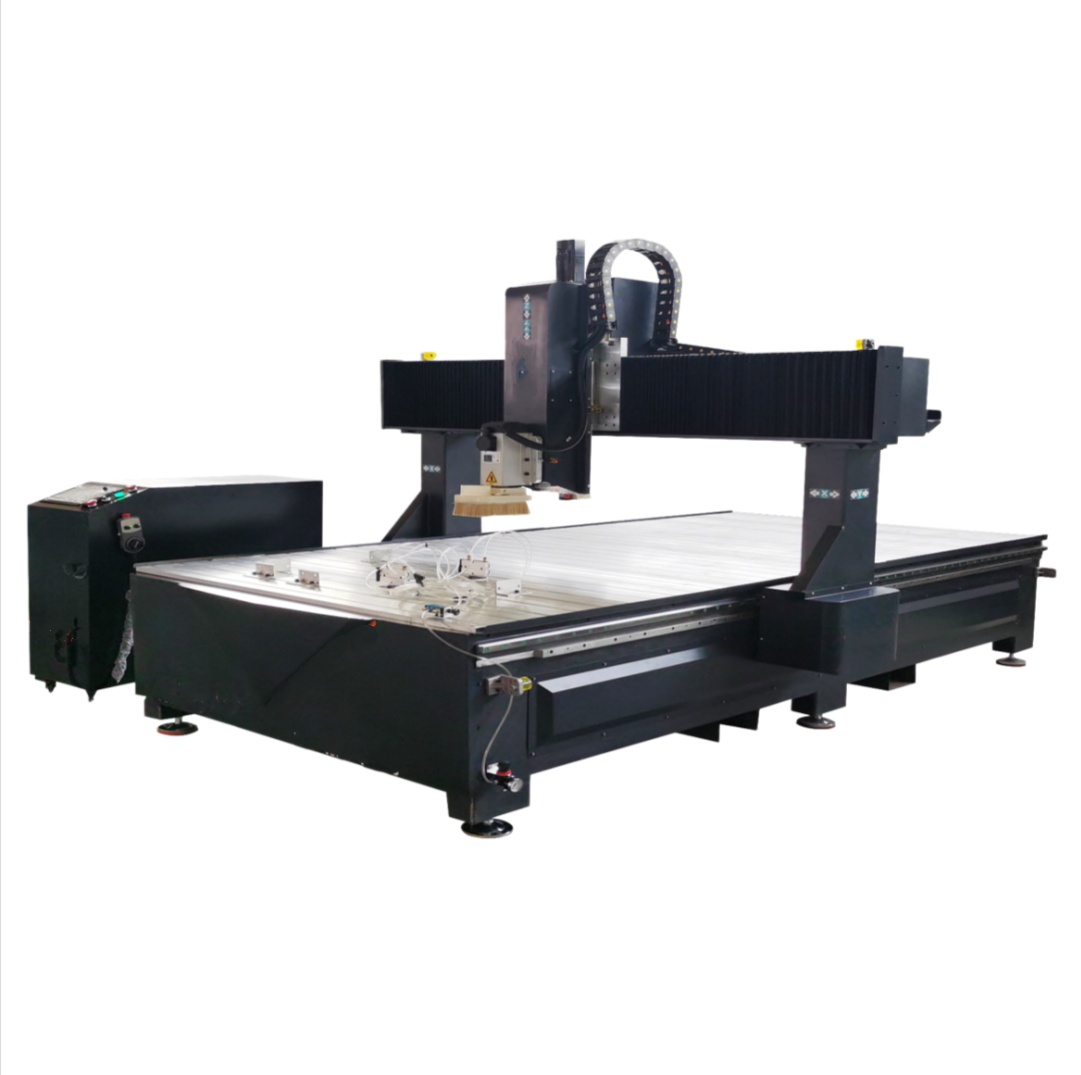

WS1525BT 4 Axis Styrofoam CNC Router

Description

1.Feature of styrofoam cnc router

Spindle can wave +/- 90 degree, can do 2d engraving on curved surface

2.Application of foam cnc router

Round eps pipe (engrave two same pieces, and paste them into one round pipe). Eps curved surface milling, flat foam sheet engraving and wood engraving milling, perforated-plate/sieve plate in mine industry

Item	Data
Model	WS1525BT
Machine frame	Thick welded steel pipe
Machine table	T-slot table
Machine size (mm)	25001500500（LWH）
X axis working size（㎜）	1500mm（4 axis working width is 1100mm）
Y axis working size（㎜）	2500mm
Z axis working size（㎜）	400mm
Working power	AC380V/50HZ
Spindle power	HQD 6KW air cooling spindle
Spindle rotating speed	0-18000r/min
Tools max size	Φ20mm
Inverter	7.5KW
Transmission	XY helical rack pinion, Z axis high precision Taiwan TBI ball screw
Control system	Own R&D controller (with handwheel and tool sensor)
Motor	Hybrid/closed loop servo
Guiding system	25 size square rail
Dust collector	5.5KW double bags dust collector
